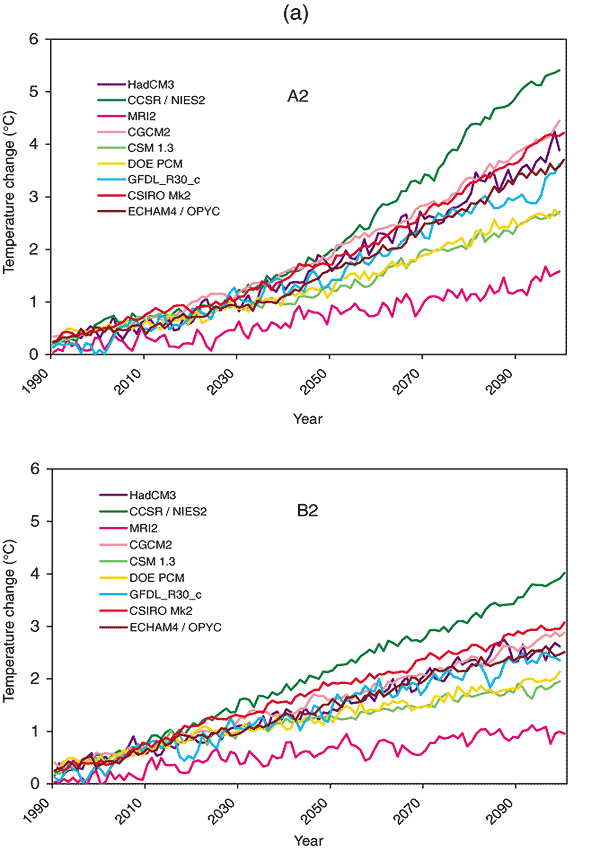

Figure 9.6: (a) The time
evolution of the globally averaged temperature change relative to the years (1961
to 1990) of the SRES simulations A2 (top) and B2 (bottom) (Unit: °C). See
Table 9.1 for more information on the individual models

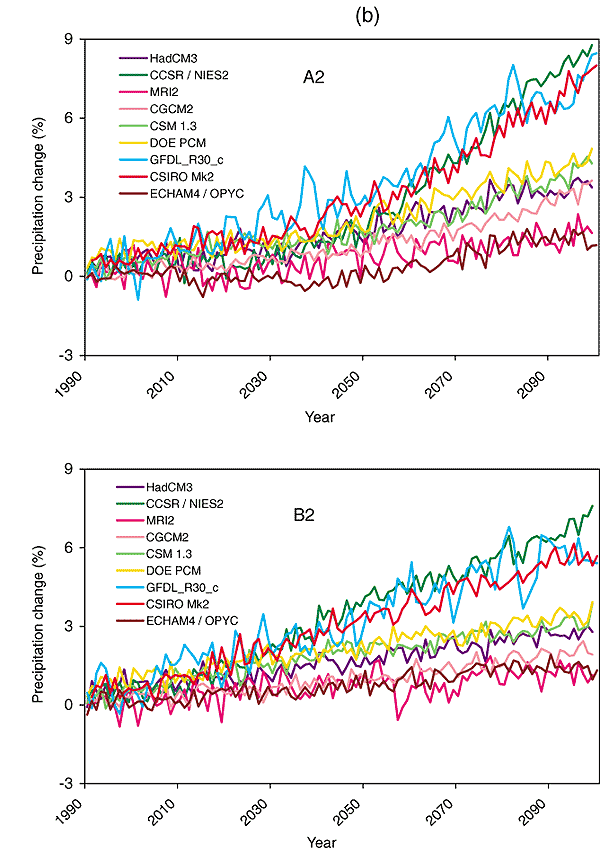

used here. (b) The time evolution of the globally averaged precipitation change
relative to the years (1961 to 1990) of the SRES simulations A2 (top) and B2 (bottom)
(Unit: %). See Table 9.1 for more information on the
individual models used here.
