3.5.5 Regional Differences

Differences in emission reduction potential are mainly caused by differences in specific energy consumption of industrial processes. In recent years attention was paid to developing methods to compare energy efficiency levels on a physical basis (Phylipsen et al., 1998a), in addition to methods that compare energy efficiency levels on a monetary basis (see, e.g., Schipper and Meyers, 1992). Energy efficiency indicators on a physical basis start from the level of energy consumption per unit of product (e.g., expressed in GJ/t). However, countries may differ in the production structure per sector (i.e. differences in product mix and associated differences in feedstocks used). Correction for such differences can take place by relating the specific energy consumption level for each product to a best practice level, resulting in a so-called energy efficiency index. The more efficient the aggregate of processes in a sector in a country, the lower the energy efficiency index. The energy efficiency indices are scaled in such a way that if all processes were operated at the best-practice level, the index would be 100.

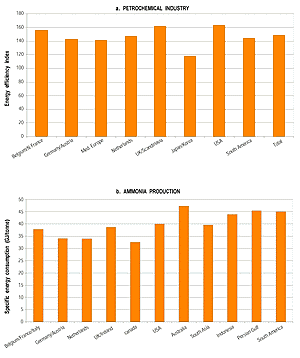

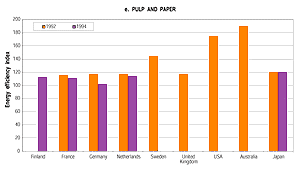

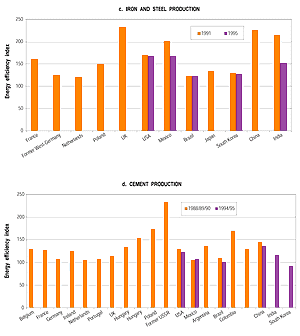

Results up to now are presented in Figure 3.13. Apart from correction for structure, international comparison of energy efficiency requires correction for statistical errors. A common source of error in the process industries is the double counting of fuels (e.g., in the iron and steel industry double counting of coke input to the blast furnace and blast furnace gas). After correction for such errors the energy efficiency indicators – like those presented in Table 3.19 – show a typical uncertainty of 5% (Farla, 2000).

Despite the remaining uncertainties, some conclusions can be drawn from these data. In general Japan and South Korea and countries in Western Europe show the lowest energy efficiency index (i.e., they are most efficient). Developing countries, economies in transition and some OECD countries (like the USA and Australia) show higher levels of this index. However, there are certainly exceptions; for instance, some developing countries show fairly low levels of the energy efficiency index for some sectors. This may be explained by the fact that these countries are developing at a high rate, and hence apply relatively young and modern technology. In general the countries with the highest energy efficiency index will have the highest technical potential for energy efficiency improvement. The differences in economic potential may be smaller, as a consequence of the lower energy prices that often occur in the less efficient countries. In this section a number of regional studies – mainly into energy efficiency in industry – are reviewed.

3.5.5.1 China

Industry is responsible for 75% of commercial energy end-use in China (IEA, 1997d). The period from 1980 to 1996 has seen a strong economic growth and growth of industrial production, but also a substantial decline of the energy/GDP ratio of about 4% per year (China Statistical Yearbook). The share of energy efficiency and structural change in this decline is uncertain, but it is clear that substantial energy efficiency improvement was obtained (Zhou and Hu, 1999; Sinton, 1996). Nevertheless, Chinese industry is still substantially less energy efficient than most OECD countries (Wu and Wei, 1997), see also Figure 3.13. Within industry, the steel industry is most important, consuming 23% of industrial energy use in 1995 (IEA, 1997d). Zhou and Hu (1999) analysed the differences between the Chinese and the efficient Japanese iron and steel industry and identified a range of measures to improve the specific energy consumption of the Chinese steel industry. Important measures are the recovery of residual gases (2.7GJ/t steel); boiler modification and CHP (2.1 GJ/t); improved feedstock quality (2.1GJ/t); wider application of continuous casting (1.0GJ/t); and others (2.0GJ/t). The total leads to a reduction of 25% compared to the present average of 35.6GJ/t (Zhou and Hu, 1999). An analysis of future prospects by Worrell (1995) shows that, in the case steel production grows from 93Mt in 1995 to 140Mt in 2020, energy consumption in the Chinese steel industry is likely to grow. But the growth can be very moderate if modern technologies, like smelt reduction and near-net-shape casting, are adopted. Also for two other important sectors, the building materials industry and the chemical industries, substantial technical saving potentials are reported (Zhou and Hu, 1999). Liu et al. (1995) report for the cement industry – consuming 10% of industrial energy use in 1995 – a potential for reduction of the specific energy consumption of 32% in the period 1990 to 2000; associated investments are estimated at 105 billion yuan (~US$13 billion). Important economically viable options are comprehensive retrofit of vertical kilns (e.g., improving refractory lining) and wet kilns, and kiln diameter enlargement and retrofit. Similar savings can be reached when adding a pre-calciner to the kilns, which is, however, the most expensive option. All cost-effective measures add up to a 20% reduction of primary energy consumption compared to the base line energy use in 2010 (Sinton and Yang, 1998).

3.5.5.2 Japan

In Japan, industry accounts for nearly half of the final energy demand. Industrial energy demand is stabilizing, mainly because of the shift from heavy industry to sectors like electrical machinery, precision instruments, and motor vehicles.
