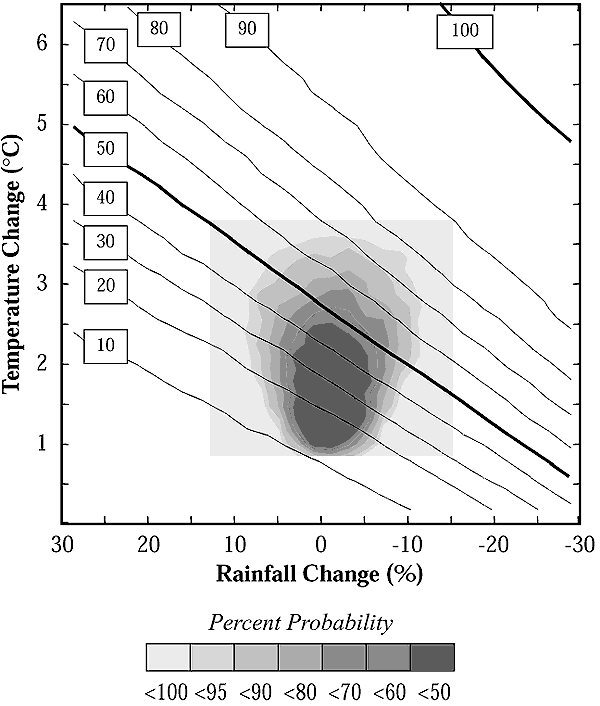

Figure 12-5: Risk response surface incorporating cumulative probability plots (in shaded box) for climate change magnitudes as indicated on x- and y-axes. Indicated percentage probabilities are probabilities of climate change in northern Victoria in 2070 lying within each shaded area (thus, there is a 100% probability of climate within the shaded square, and a 50% probability of climate within the innermost region). Probability (in percent) of irrigation water demand exceeding farm supply cap in any one year, for indicated climate change, is indicated by oblique lines. Critical threshold (heavy line) is set at a 50% chance of exceeding the cap (Jones, 2000).
