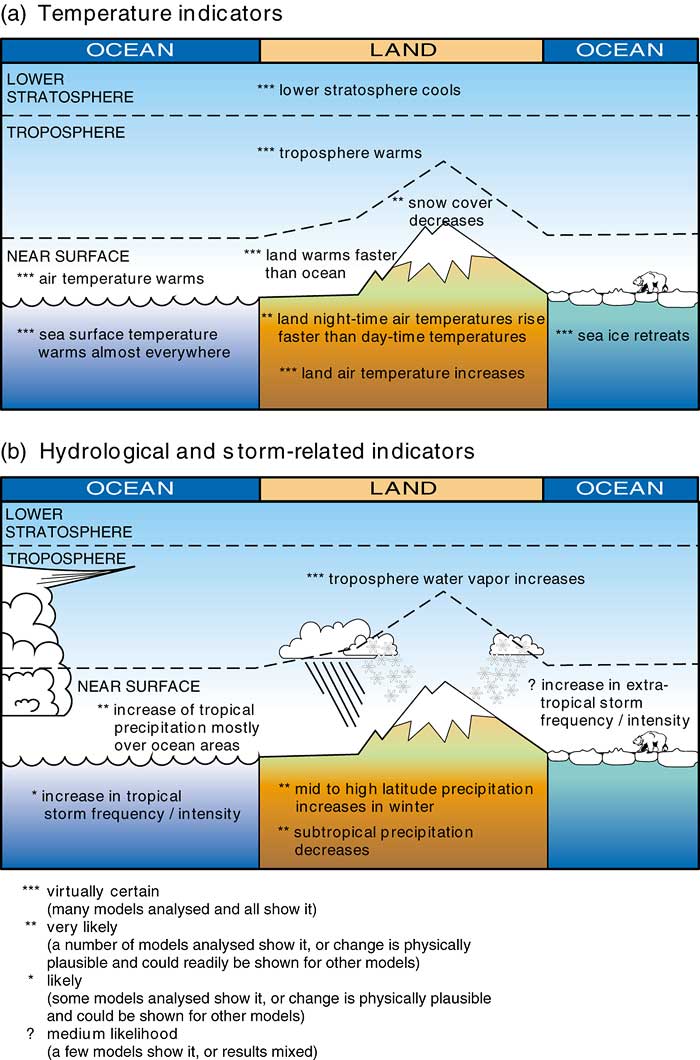

Figure 9.31: Schematic of
changes in the temperature and hydro-logical indicators from projections of future
climate changes with AOGCMs. This figure can be compared with Figure
2.37 to note climate changes already observed, to provide a measure of qualitative
consistency with what is projected from climate models.
