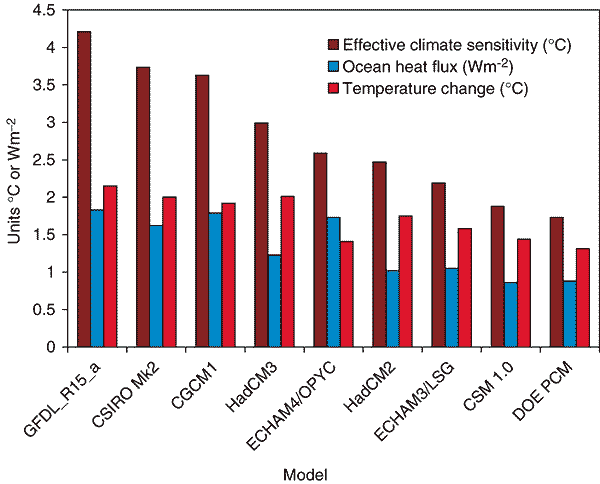

Figure 9.20: Comparison
of CMIP2 model results for 20-year average values centred on year 70, the time
of CO2 doubling. Values are shown for the effective climate sensitivity,
the net heat flux across the ocean surface multiplied by the ocean fraction and
the global mean temperature change (TCR).
