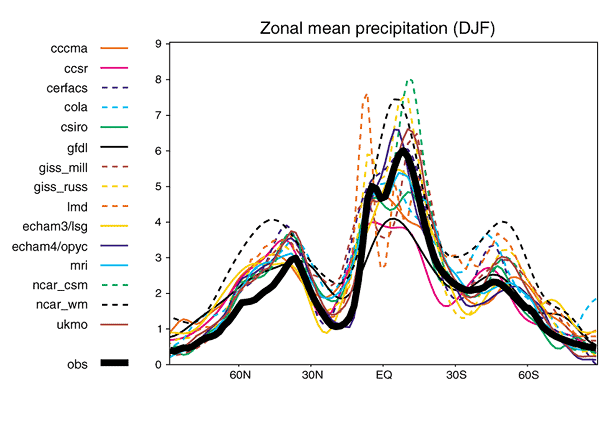

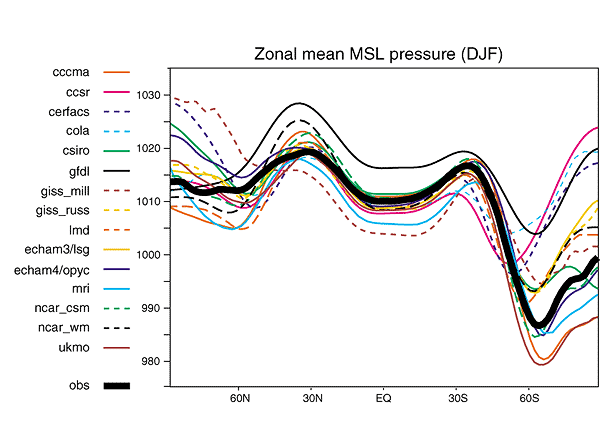

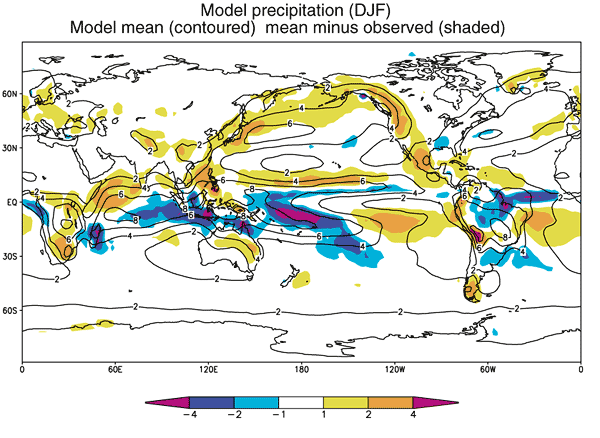

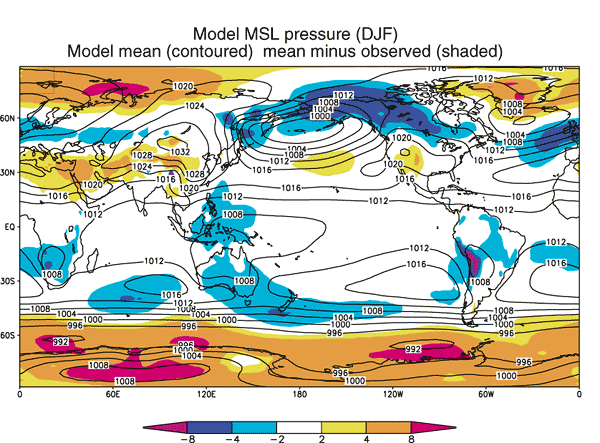

Figure 8.3: December-January-February
climatological precipitation in mm per day (top) and mean sea level pressure in
hPa (bottom) simulated by CMIP1 model control runs. Averages over all models are
shown at left and zonal mean values for individual models are shown at right.
Observed values are shown on the zonal mean plot (thick solid line) and the difference
between an “average model” and the observations is shown by shading
on the longitude-latitude maps. From Lambert and Boer (2001).
