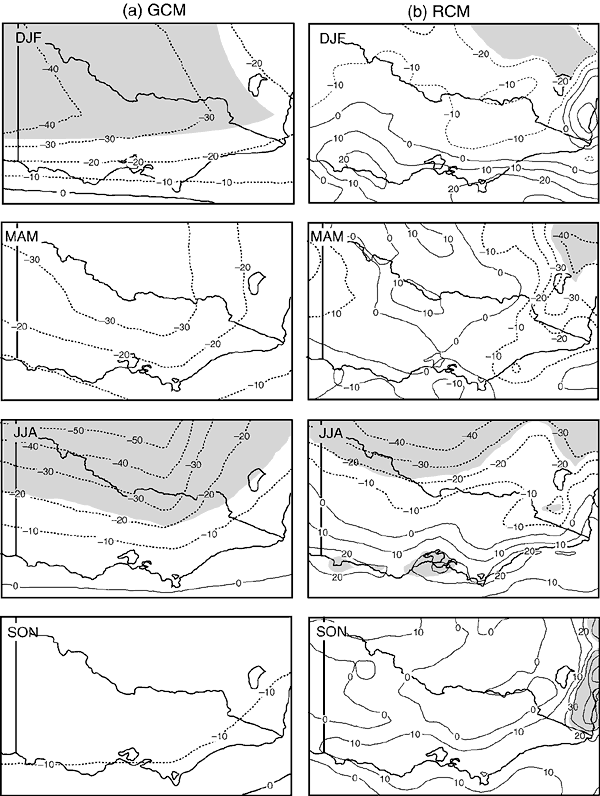

Figure 10.13: Percentage
change in mean seasonal rainfall under 2xCO2 conditions as simulated
by a GCM (a) and a RCM (b) for a region around Victoria, Australia. Areas of change
statistically significant at the 5% confidence level are shaded. Whetton et al.
(2001).
