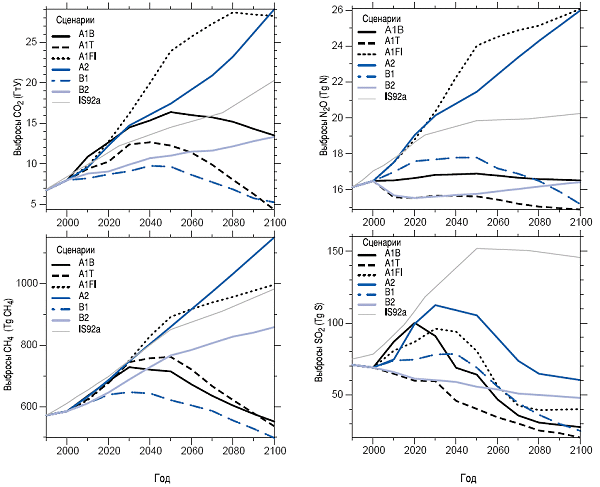

Figure 17: Anthropogenic
emissions of CO2, CH4, N2O and sulphur dioxide
for the six illustrative SRES scenarios, A1B, A2,
B1 and B2, A1FI
and A1T. For comparison the IS92a scenario is also
shown. [Based on IPCC Special Report on Emissions Scenarios.]
